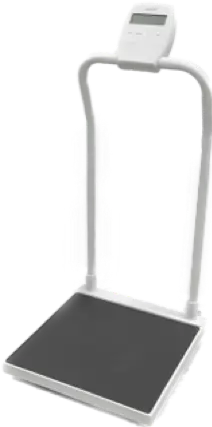

DS7040 Waist
High Handrail Scale

Ruggedly constructed with 800-pound capacity and a low-profile scale platform delivering accuracy and reliability with easy maneuverability.

Medical
Battery
BMI
EMR
WiFi
Portable
  • Overview

    Exclusive weighing features. Ideal for any office.

    Heavy duty construction, accuracy, and reliability – all at an economical price. The welded tubular steel structure of the DS7040 provides a handrail at the ideal height and wraps around the generously sized weighing platform. To ensure patient safety, the 800 pound capacity low-profile scale platform is covered edge to edge with a non-skid surface.

    Moving the scale from room to room is easy. Simply tilt the scale back on the two built-in, non-marking wheels and roll the scale to its new destination. The large diameter foot pads makes sure the scale remains in place when the patient steps on and off the scale.

    Doran’s exclusive Weight Lock feature ensures an accurate weight is displayed regardless of a patient’s movements. Our Reweigh functionality allows a second weight to be acquired while the patient remains on the platform.

    The DS7040 features an included wall mount transformer, standard RS-232 and USB ports allowing the patient’s weight and BMI values be sent to an EMR/EHR system. WiFi and international transformers are optional.

  • Specifications And Options

    Specifications

    Warranty: Two Years
    Power: AC Adapter (Included) 100-240VAC, 50/60HZ ULc, ULus, CE
    6 AA batteries NOT included
    Battery Life: 20,000 Weighments
    Communications: EMR Ready RS-232 Standard, USB Standard, WiFi Optional
    Display: 1" Tall LCD
    Controls: Units, Reweigh, BMI, Scroll Up/Down and Zero
    Units: lb, kg, Units lock feature
    Construction: Painted Steel with Plastic Trim
    Dimensions: Scale Dimensions: 20.5" W x 24" D x 44.5" H
    Platform Dimensions: 20.5" W x 18" D x 3" H
    Weight Capacity: 800 x 0.2 lb (360 x 0.1 kg)
    Accuracy: +/- 0.5 lb (0.2 kg)
    BMI Calculator: Input data in FT/IN or CM

    Options

    Optional Communications: WiFi
    Options: RS232 Communications Cable
    USB Communications Cable
    WiFi Communication
    International Power Supply
