Accessibility and accuracy in one package

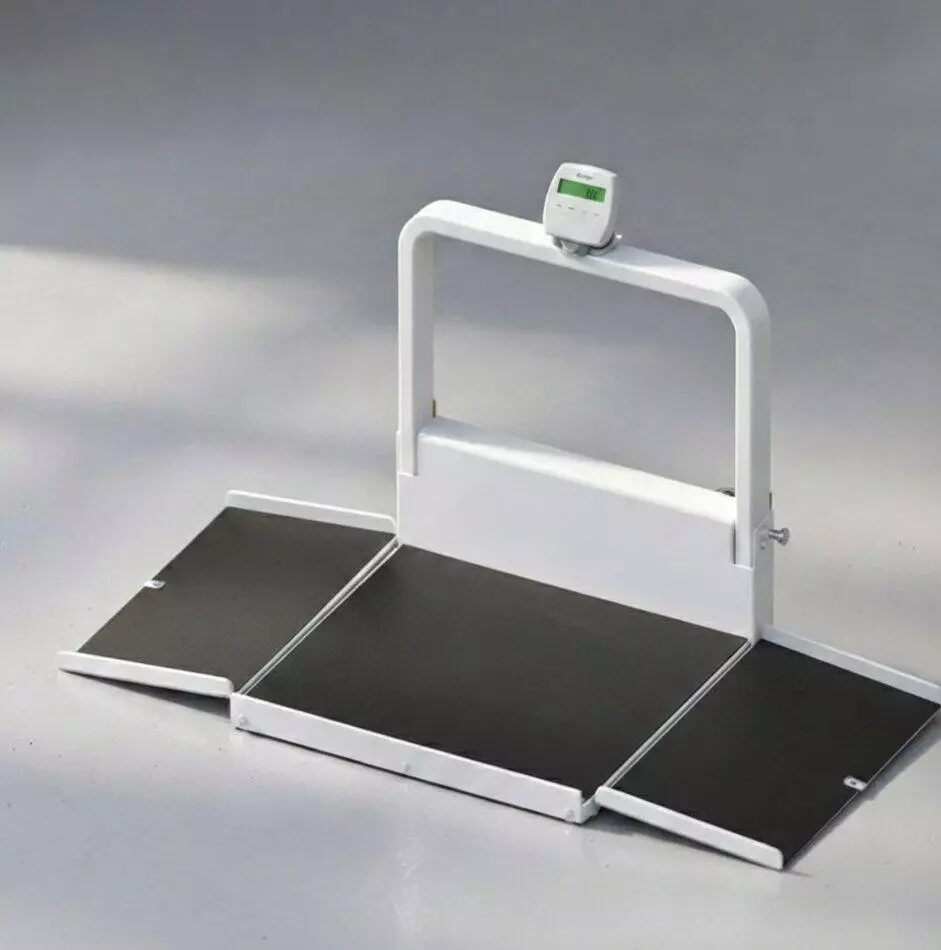

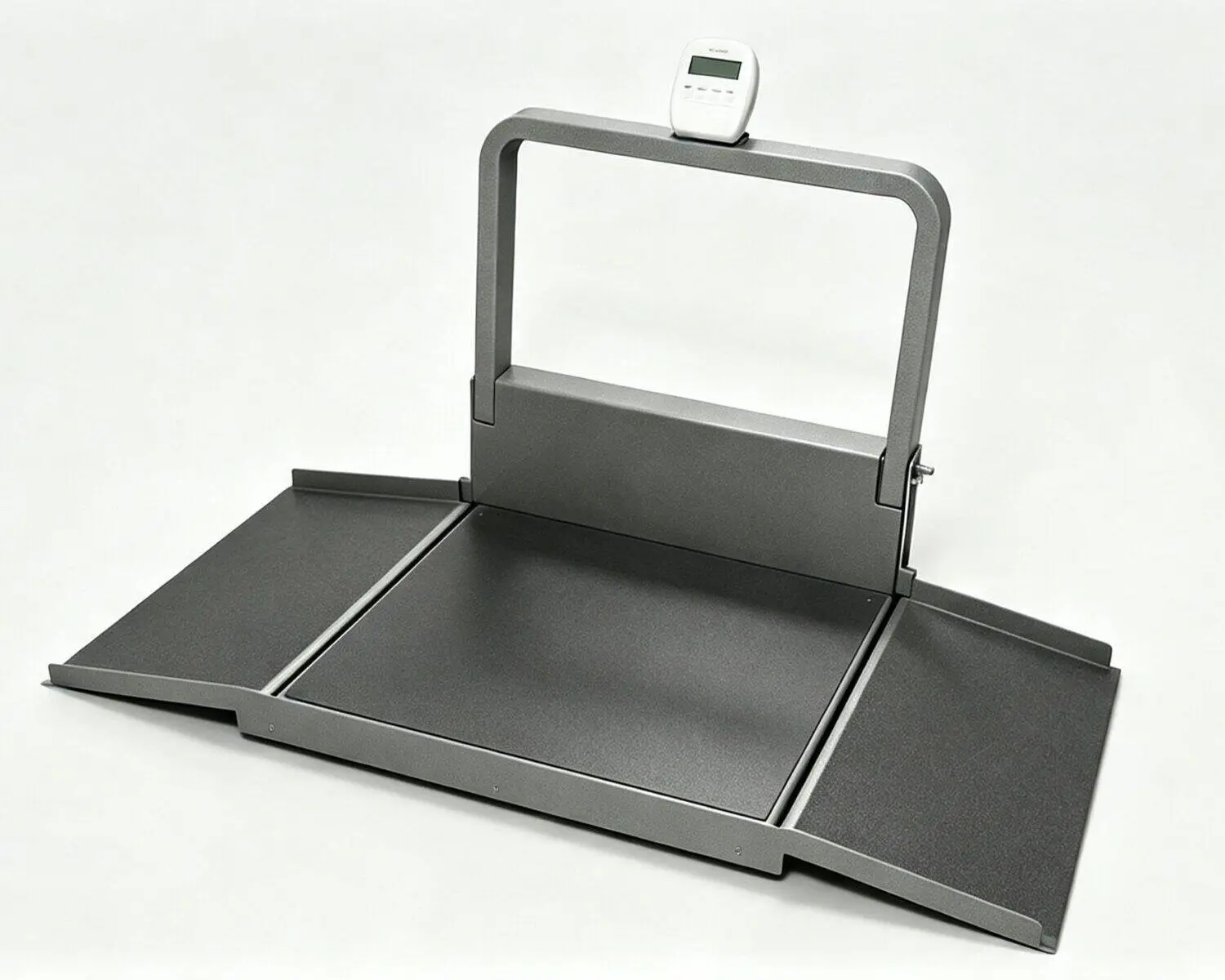

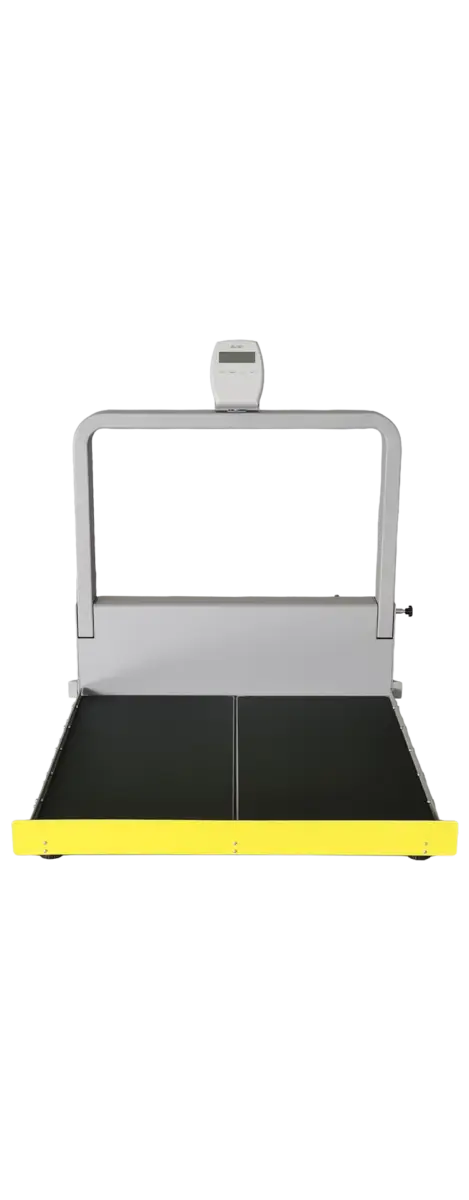

ADA-compliant equipment is now a requirement for many medical facilities, and the DS9100-ADA is Corada Platinum Certified for ADA compliance. It was engineered in accordance with MDE Standards for wheelchair scales, and features an extra-wide, low-profile platform with two gently sloped ramps for enhanced accessibility.
Built off the tested DS9100 series of scales, the DS9100-ADA possesses the accuracy and durability necessary for years of use in clinical settings. It’s 1000 pound capacity, LCD display, and Units Lock functionality ensures clear and precise measurements every time. Also, the folding design and four sturdy casters allow for staff to easily relocate the scale at a moment’s notice, and the hydraulic-assisted opening means its ready to weigh in minutes. Furthermore, our industry-leading EMR-Approved integration communicates with more EMR systems than the competition and features validated data transfer over RS-232, USB, and WiFi connections.
The Doran Difference
In addition to building hardware that can handle the rigors of daily clinical use, Doran’s software solutions change the way you weigh.
- EMR-Approved: Doran’s designation that a scale and its integration have been fully developed, rigorously tested, and verified to provide seamless, secure communication with more Electronic Medical Record (EMR) systems than competing solutions, while supporting validated data transfer through flexible connectivity options.
- Tare: Adjustable tare weight for a wheelchair and it displays the net weight of the patient on the indicator.
- Units Lock: Lock the units to either lbs or kgs, ensuring an accidental button press doesn’t result in a bad reading.
- Average hold: Our exclusive feature for patients that struggle to keep still, averaging several weights during excessive motion to record an accurate weight.
- Stable Hold: Indicates a stable weight has been achieved and held on the display.
- Reweigh: Functional button on the indicator that allows a second weight to be acquired while the patient remains on the platform.
- BMI: Instant BMI calculation with EMR capabilities.
Features at a glance
- Withstands any cleaner formulated for the medical industry like bleach, hydrogen peroxide, and alcohol.
- AC or battery powered, AC adapter is included.
- USB & RS-232 communication ports standard.
- Wifi communication optional.
- lb/kg unit operation.
Specifications
| Warranty: | Three Years |
| Power: | AC Adapter (Included) 100-240VAC, 50/60HZ ULc, ULus, CE 6 AA batteries NOT included |
| Battery Life: | One Year |
| Weight Capacity: | 1000 x 0.1 lb (454 x 0.05 kg) |
| Construction: | Aluminum and Painted Steel with Plastic Trim |
| Dimensions: | Resting on Feet Weighing Platform: 40.1" W x 36.1" D x 2.5" H Two Ramps Extended : 87.6" W x 45.3" D x 46.7" H Two Ramps Folded: 43.8" W x 45.3" D x 46.7" H Transport and Storage Ramps and Column Folded Standing on Casters: 43.8" W x 15.7" D x 45.3" H |
| Display: | 1" High LCD |
| Units: | lb, kg, Units Lock feature |
| Controls: | Zero, LB, KG, Last Weight, Reweigh, BMI, Full Keypad, Chair Recall, Enter |
| BMI Calculator: | Input data in FT/IN or CM |
Options
| Options: | RS-232 Communications Port USB Communications Port US AC Adapter (Part#: XFR0082) International Transformer (Part#: Varies With Region) 180 degree Indicator Rotation |
