DS7100 Handrail
Scale

Engineered for accuracy, patient safety, and easy portability, this ergonomically designed light-weight unit is accurate up to 1,000 pounds.

Medical
Weight
Battery
BMI
Portable
  • Overview

    Full featured scale. Portable and reliable.

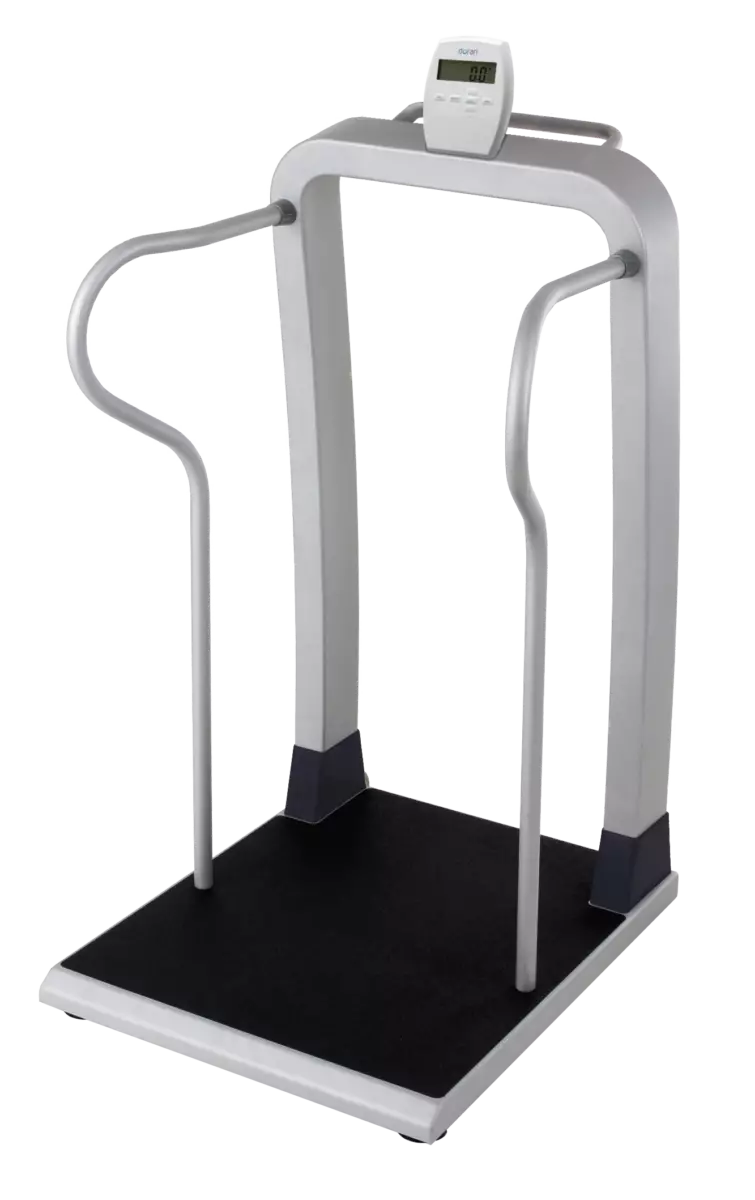

    Accuracy, patient safety, and portability have all been engineered into the Doran DS7100 Handrail Scale. Because the scale only weighs 30 pounds, moving it from room to room takes very little effort. Simply tilt the scale back on the two built-in, non-marking wheels and roll to your destination.

    As soon as the patient steps onto our well designed, low-profile DS7100 platform, an accurate weight up to 1,000 pounds will be held on the display. Doran’s exclusive Weight Lock feature ensures an accurate weight is displayed regardless of a patient’s movements. Our Reweigh functionality allows a second weight to be acquired while the patient remains on the platform.

    After the patient has stepped off the platform, Last Weight allows the previous weight and BMI value to be recalled for later recording.

    DS7100-HR

    The Model DS7100-HR offers the same features of the DS7100 Handrail Scale with the addition of an integrated height rod.

  • Specifications And Options

    Specifications

    Warranty: Three Years
    Power: Six AA Batteries (Included)
    Battery Life: 11,000 Weighments
    Display: 1" High LCD
    Controls: Zero, LB, KG, Last Weight, Reweigh, Scroll Up/Down and BMI
    Units: lb, kg, Units Lock feature
    Construction: Aluminum and Painted Steel with Plastic Trim
    Dimensions: Scale Dimensions: 25" W x 29" D x 46" H
    Platform Dimensions: 22.5" W x 20.5" D x 2" H
    Weight Capacity: 1000 x 0.1 lb (454 x 0.05 kg)
    BMI Calculator: Input data in FT/IN or CM

    Options

    Options: Height Rod (Part#: DS7100-HR)
    RS-232 Communications Port
    USB Communications Port
    AC Adapter (Part#: XFR0047)
    International Power Supply (Part#: Varies With Region)
