Overview
Stainless steel. 300% overload protection.

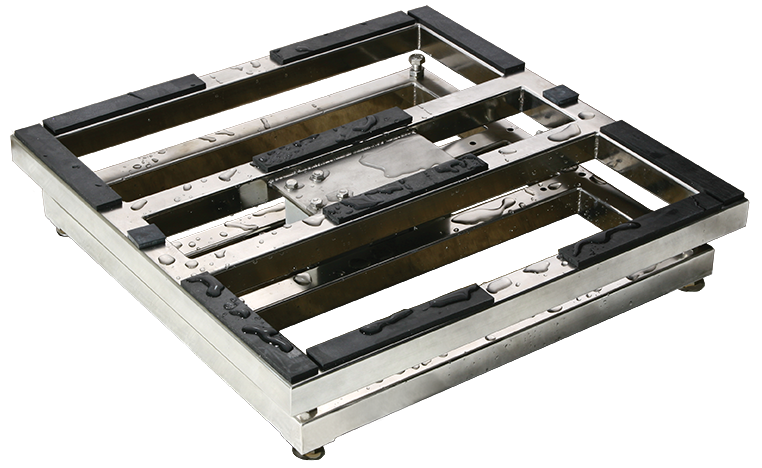

Doran Scale Bases are the result of almost five decades of design experience in industrial weighing systems. Heavy-duty components, innovative features and exceptional build quality offer best-in-class protection against the damaging effects of shock and other environmental factors that can cause costly repairs and production downtime.
A range of scale base sizes in mild steel and 304 stainless meets a wide range of industrial and washdown applications. Connect the load cell output to any indicator with a column or bracket for a complete weighing system.
DSS STAINLESS STEEL – WASHDOWN SAFE
Built to last and made to perform, with 304 stainless steel to resist the corrosive effects of a wet environment. Square tubular construction with sealed ends for food and wet environments.
Complete washdown protection
Every component is designed to maintain performance in washdown environment. Tube ends are welded shut to be safe for food processing.
DSS Roller Conveyor option
Stainless steel rails with Stainless Steel Ball Transfer Units. Six 1.9″ diameter galvanized rollers on 3″ centers. Roller weight capacity is 250lb per roller.
Stainless Steel Load cell option
Available with 20″ or 30″ columns
DSS Series SS Scale Bases
304 Stainless Steel Construction
300% overload protection
Legal for Trade at 5,000d
Available in 3 sizes
18″ x 18″ x 5.25″ Tall
18″ x 24″ x 5.25″ Tall
24″ x 24″ x 5.25″ Tall
Models available for 50, 100,
250, 500 and 1000 pound capacityKEY PERFORMANCE FEATURES INCLUDE
NTEP and CWM Approved
IP66 Rated Load Cells
Two-year warranty
Optional Ball Transfer Top or Rollers
Wide selection of columns and brackets
-
Specifications And Options
Specifications
Warranty: Two Years Load Cell: IP66, Anodized Aluminum is standard, optional Stainless Steel is also available. 10ft cable, longer length is optional Output: 2 mV/V max, full scale Overload: 300% maximum; 6 overload stops Mechanical: 4 Adjustable Feet Bubble Level Construction: 304 Stainless Steel Platter, Base and Spider Options
Options: Stainless steel load cells
Roller conveyors
Ball transfers
Stainless steel. 300% overload protection.
Doran Scale Bases are the result of almost five decades of design experience in industrial weighing systems. Heavy-duty components, innovative features and exceptional build quality offer best-in-class protection against the damaging effects of shock and other environmental factors that can cause costly repairs and production downtime.
A range of scale base sizes in mild steel and 304 stainless meets a wide range of industrial and washdown applications. Connect the load cell output to any indicator with a column or bracket for a complete weighing system.
DSS STAINLESS STEEL – WASHDOWN SAFE
Built to last and made to perform, with 304 stainless steel to resist the corrosive effects of a wet environment. Square tubular construction with sealed ends for food and wet environments.
Complete washdown protection
Every component is designed to maintain performance in washdown environment. Tube ends are welded shut to be safe for food processing.
DSS Roller Conveyor option
Stainless steel rails with Stainless Steel Ball Transfer Units. Six 1.9″ diameter galvanized rollers on 3″ centers. Roller weight capacity is 250lb per roller.
Stainless Steel Load cell option
Available with 20″ or 30″ columns
DSS Series SS Scale Bases
304 Stainless Steel Construction
300% overload protection
Legal for Trade at 5,000d
Available in 3 sizes
18″ x 18″ x 5.25″ Tall
18″ x 24″ x 5.25″ Tall
24″ x 24″ x 5.25″ Tall
Models available for 50, 100,
250, 500 and 1000 pound capacity
KEY PERFORMANCE FEATURES INCLUDE
NTEP and CWM Approved
IP66 Rated Load Cells
Two-year warranty
Optional Ball Transfer Top or Rollers
Wide selection of columns and brackets
Specifications
| Warranty: | Two Years |
| Load Cell: | IP66, Anodized Aluminum is standard, optional Stainless Steel is also available. 10ft cable, longer length is optional |
| Output: | 2 mV/V max, full scale |
| Overload: | 300% maximum; 6 overload stops |
| Mechanical: | 4 Adjustable Feet Bubble Level |
| Construction: | 304 Stainless Steel Platter, Base and Spider |
Options
| Options: | Stainless steel load cells Roller conveyors Ball transfers |
